URDH–005 Rotary Disc Harrow by Patel Agro Industries is a rugged, high-performance tillage implement designed for primary and secondary soil preparation. This model is ideal for pulverizing soil, breaking up clods, and mixing crop residues into the field, ensuring a well-prepared seedbed for planting.

Model: URP SC-35 is suitable for 35 to 40 HP tractor. Best suitable model for light soil.

AUTOMATIC RVERSIBLE MB PLOUGH SINGLE BOTTOM AM-635

HYDRAULIC RVERSIBLE MB PLOUGH SINGLE BOTTOM SC-650

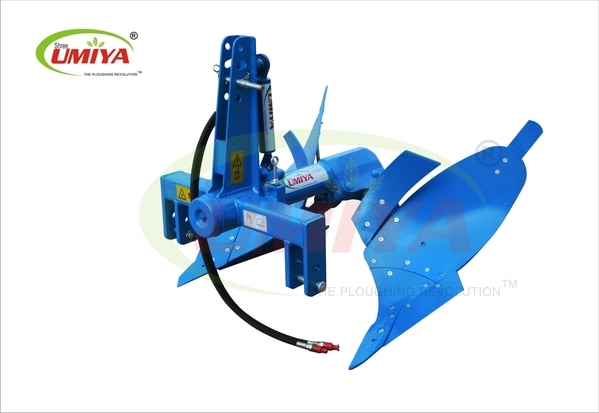

HYDRAULIC REVERSIBLE MB PLOUGH SINGLE BOTTOM "SHREE UMIYA" new designed plough "URP SC 645" with single bottom.

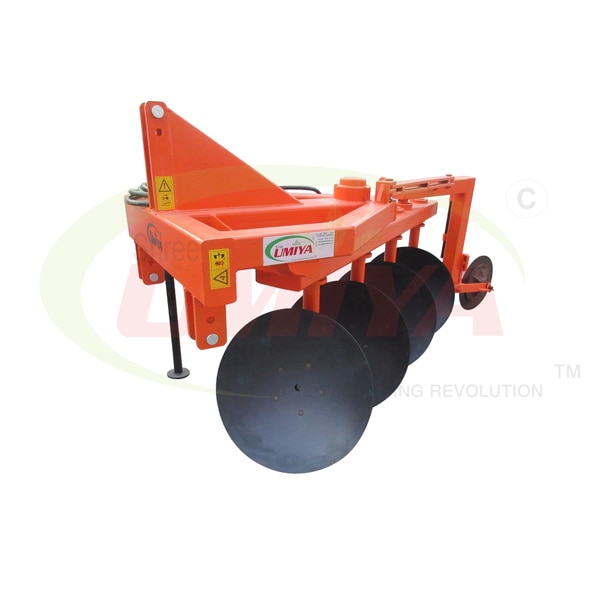

MODEL: URDP-H-70 SERIES: DISC PLOUGH SERIES BRAND: “SHREE UMIYA” SPECIFICATION: OVERALL WIDTH: 1275mm OVERALL LENGTH: 2815mm OVERALL HEIGHT: 1315mm FRAME: 200MM X 100MM SQUARE PIPE MAIN SHAFT: Ø100MM ROUND BAR TYNE: Ø70MM ROUND BAR NUMBER OF DISC: 4 DISC DISC DIA & THICKNESS: Ø660 X 6mm THICKNESS WORKING WIDTH: 1118MM MOVEMENT: HYDRAULIC WEIGHT (APPROX): 650 KG POWER REQUIRED: 65 HP TO 90 HP *All Dimension are MM,

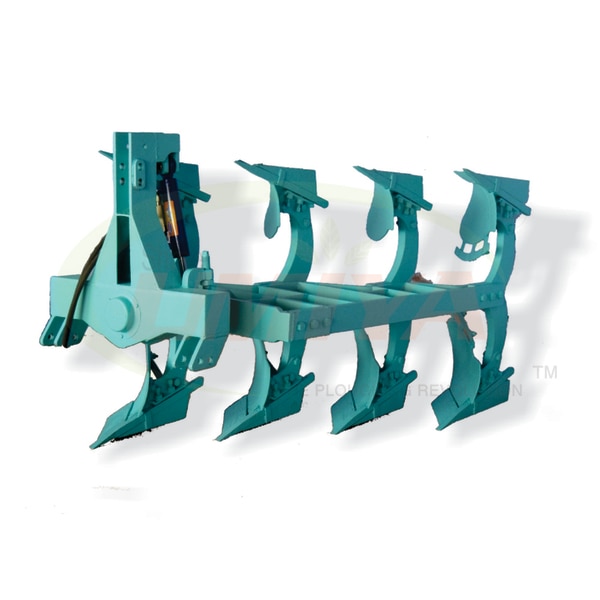

MODEL: URP SC - 355 SERIES: REGULAR SERIES BRAND: “SHREE UMIYA” SPECIFICATION: SIZE: 4 FURROW FRAME: 100MM X 25 MM BOX MAIN SHAFT: 100MM ROUND TYNE: 32 MM (3-TYPE) WORKING WIDTH: 40” INCH HEIGHT: 45” INCH BLADE: 12 MM MOULD BOARD: 8 MM (16” TYRE) SHOVEL (POINT): 32MM X 25MM BEARING: 33019 (2 NOS) ADJUSTMENT: HYDRAULIC DISTANCE BETWEEN TYNE: 10 INCH DEPTH OF CUT: 10 TO 12 INCH WEIGHT (APPROX): 620 KG POWER REQUIRED: 50-60 HP *All Dimension are MM,

MODEL:- URP SC - 350 SERIES:- REGULAR SERIES BRAND:- “SHREE UMIYA” SPECIFICATION: SIZE: 3 FURROW FRAME: 100MM X 25 MM BOX MAIN SHAFT: 100MM ROUND TYNE: 35 MM (3-TYPE) WORKING WIDTH: 30” INCH HEIGHT: 45” INCH BLADE: 12 MM MOULD BOARD: 8 MM (16” TYRE) SHOVEL (POINT): 32MM X 25MM BEARING: 33019 (2 NOS) ADJUSTMENT: HYDRAULIC DISTANCE BETWEEN TYNE: 10 INCH DEPTH OF CUT: 10 TO 12 INCH WEIGHT (APPROX): 500 KG POWER REQUIRED: 50-60 HP *All Dimension are MM,

MODEL: - URP SC - 345 SERIES: - REGULAR SERIES BRAND: - “SHREE UMIYA” SPECIFICATION: SIZE: - 3 FURROW FRAME: - 100MM X 25 MM BOX MAIN SHAFT: - 100MM ROUND TYNE: - 32 MM (3-TYPE) WORKING WIDTH: - 30” INCH HEIGHT: - 45” INCH BLADE: - 12 MM MOULD BOARD: - 6 MM (14” TYRE) SHOVEL (POINT): - 32MM X 25MM BEARING: - 33019 (2 NOS) ADJUSTMENT: - HYDRAULIC DISTANCE BETWEEN TYNE: - 10 INCH DEPTH OF CUT: - 10 TO 12 INCH WEIGHT (APPROX): - 465 KG POWER REQUIRED: -45-55 HP *All Dimension are MM,

MODEL: - URP SC - 303 SERIES: - REGULAR SERIES BRAND: - “SHREE UMIYA” SPECIFICATION: SIZE: - 3 FURROW FRAME: - 100MM X 25 MM BOX MAIN SHAFT: - 100MM ROUND TYNE: - 25 MM (3-TYPE) WORKING WIDTH: - 30” INCH HEIGHT : - 45” INCH BLADE: - 12 MM MOULD BOARD: - 6 MM (14” TYRE) SHOVEL (POINT): - 32MM X 25MM BEARING: - 33019 (2 NOS) ADJUSTMENT: - HYDRAULIC DISTANCE BETWEEN TYNE: - 10 INCH DEPTH OF CUT: - 10 TO 12 INCH WEIGHT (APPROX): - 425 KG POWER REQUIRED: - 40-45 HP *All Dimension are MM,

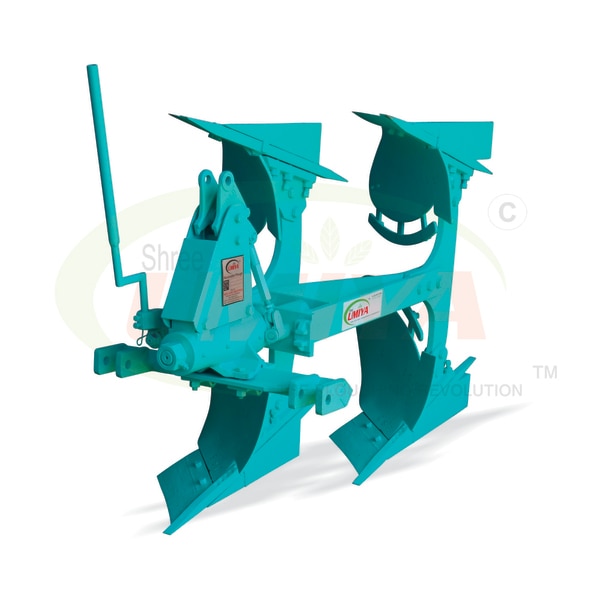

MODEL: - URP ME 45 SERIES: - SINGLE CYLINDER SERIES BRAND: - “SHREE UMIYA” SPECIFICATION: SIZE: - 2 FURROW FRAME: - 100MM X 25 MM BOX MAIN SHAFT: - 100MM ROUND TYNE: - 28 MM (3-TYPE) WORKING WIDTH: - 20” INCH HEIGHT: - 51” INCH BLADE: - 12 MM MOULD BOARD: - 8 MM (14” TYRE) SHOVEL (POINT): - 32MM X 25MM BEARING: - 33019 (2 NOS) ADJUSTMENT: - MACHANICAL DISTANCE BETWEEN TYNE: - 10 INCH DEPTH OF CUT: - 12 TO 14 INCH WEIGHT (APPROX): - 450 KG POWER REQUIRED: - 40-45 HP *All Dimension are MM,

MODEL: - URP ME - 40 SERIES: - MACHANICAL SERIES BRAND: - “SHREE UMIYA” SPECIFICATION: SIZE: - 2 FURROW FRAME: - 100 MM X 25 MM BOX MAIN SHAFT: - 100 MM ROUND TYNE: - 25 MM (3-TYPE) WORKING WIDTH: - 19” INCH HEIGHT: - 48” INCH BLADE: - 12 MM MOULD BOARD: - 7 MM (14” TYRE) SHOVEL (POINT): - 32MM X 25MM BEARING: - 33019 (2 NOS) ADJUSTMENT: - HYDRAULIC DISTANCE BETWEEN TYNE : - 9.5 INCH DEPTH OF CUT: - 12 TO 14 INCH WEIGHT (APPROX): - 435 KG POWER REQUIRED: - 40-42 HP *All Dimension are MM,
