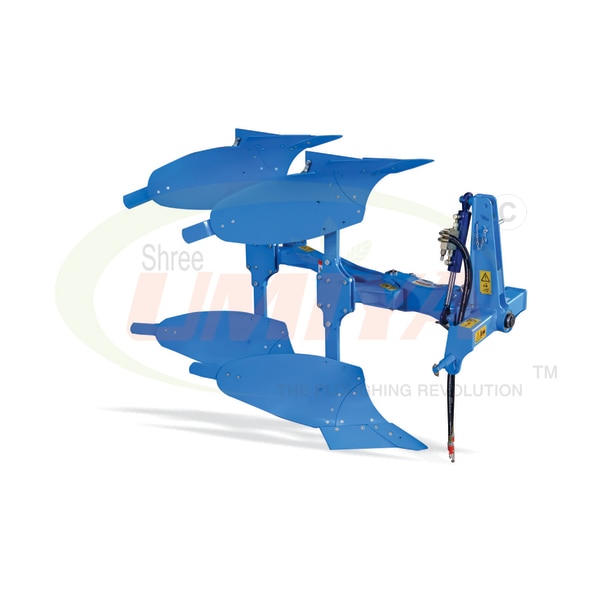

mb plough

Model: URP SC-35 is suitable for 35 to 40 HP tractor. Best suitable model for light soil.

MODEL:- URP ME - 35 SERIES:- MECHANICAL SERIES BRAND :- “SHREE UMIYA” SPECIFICATION: SIZE:- 2 FURROW FRAME:- 100 MM X 25 MM BOX MAIN SHAFT:- 100 MM ROUND TYNE:- 32 MM (C-TYPE) WORKING WIDTH:- 19” INCH HEIGHT:- 45” INCH BLADE:- 8 MM MOULD BOARD:- 8 MM (13” TYRE) SHOVEL (POINT):- 32MM X 25MM BEARING:- 33019 (2 NOS) ADJUSTMENT:- MACHANICAL DISTANCE BETWEEN TYNE:- 9.5 INCH DEPTH OF CUT:- 10 TO 12 INCH WEIGHT (APPROX):- 350 KG POWER REQUIRED:- 30-35 HP *All Dimension are MM,

MODEL :- URP SC - 111 SERIES :- MAKE IN INDIA BRAND :- “SHREE UMIYA” SPECIFICATION: SIZE :- 2 FURROW FRAME :- 90X90 SQUARE PIPE MAIN SHAFT :- 65MM TYNE :- 80X25 WORKING WIDTH :- 20 TO 28 INCH HEIGHT :- 58 INCH BLADE :- 10MM MOULD BOARD: 8MM ADJUSTMENT HYDRAULIC WEIGHT (APPROX) 400KG POWER REQUIRED 50 HP & ABOVE *All Dimension are MM,
