Products

MODEL:- URP ME - 35 SERIES:- MECHANICAL SERIES BRAND :- “SHREE UMIYA” SPECIFICATION: SIZE:- 2 FURROW FRAME:- 100 MM X 25 MM BOX MAIN SHAFT:- 100 MM ROUND TYNE:- 32 MM (C-TYPE) WORKING WIDTH:- 19” INCH HEIGHT:- 45” INCH BLADE:- 8 MM MOULD BOARD:- 8 MM (13” TYRE) SHOVEL (POINT):- 32MM X 25MM BEARING:- 33019 (2 NOS) ADJUSTMENT:- MACHANICAL DISTANCE BETWEEN TYNE:- 9.5 INCH DEPTH OF CUT:- 10 TO 12 INCH WEIGHT (APPROX):- 350 KG POWER REQUIRED:- 30-35 HP *All Dimension are MM,

MODEL URP SC - 190 SERIES MAKE IN INDIA BRAND “SHREE UMIYA” SPECIFICATION: SIZE: 4 FURROW FRAME : 90X90 SQUARE PIPE MAIN SHAFT : 65MM TYNE 80X25 WORKING WIDTH 40TO 52 INCH HEIGHT 58 INCH BLADE 10MM MOULD BOARD 8MM ADJUSTMENT HYDRAULIC WEIGHT (APPROX) 685KG POWER REQUIRED 90 HP *All Dimension are MM,

MODEL :- URP SC - 111 SERIES :- MAKE IN INDIA BRAND :- “SHREE UMIYA” SPECIFICATION: SIZE :- 2 FURROW FRAME :- 90X90 SQUARE PIPE MAIN SHAFT :- 65MM TYNE :- 80X25 WORKING WIDTH :- 20 TO 28 INCH HEIGHT :- 58 INCH BLADE :- 10MM MOULD BOARD: 8MM ADJUSTMENT HYDRAULIC WEIGHT (APPROX) 400KG POWER REQUIRED 50 HP & ABOVE *All Dimension are MM,

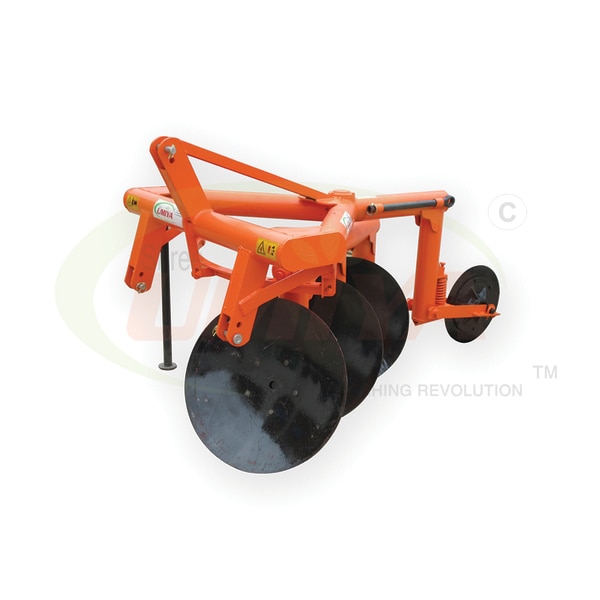

MODEL URDP-H-40 SERIES DISC PLOUGH SERIES BRAND “SHREE UMIYA” SPECIFICATION: OVERALL WIDTH 2500mm OVERALL LENGTH 1220mm OVERALL HEIGHT 128500mm FRAME 200MM X 100MM SQUARE PIPE MAIN SHAFT Ø100MM ROUND BAR TYNE Ø70MM ROUND BAR NUMBER OF DISC 3 DISC DISC DIA & THICKNESS Ø660 X 6mm THICKNESS WORKING WIDTH 762MM MOVEMENT HYDRAULIC WEIGHT (APPROX) 525 KG POWER REQUIRED 50 HP TO 75 HP *All Dimension are MM,

MODEL URDP-M-40 SERIES DISC PLOUGH SERIES BRAND “SHREE UMIYA” SPECIFICATION: OVERALL WIDTH 2250mm OVERALL LENGTH 1400mm OVERALL HEIGHT 1020mm FRAME Ø114MM ROUND PIPE MAIN SHAFT Ø70 MM ROUND BAR TYNE Ø114MM ROUND PIPE NUMBER OF DISC 3 DISC DISC DIA & THICKNESS Ø660 X 6mm THICKNESS WORKING WIDTH 762MM MOVEMENT HYDRAULIC WEIGHT (APPROX) 350 KG POWER REQUIRED 45 HP TO 50 HP *All Dimension are MM,

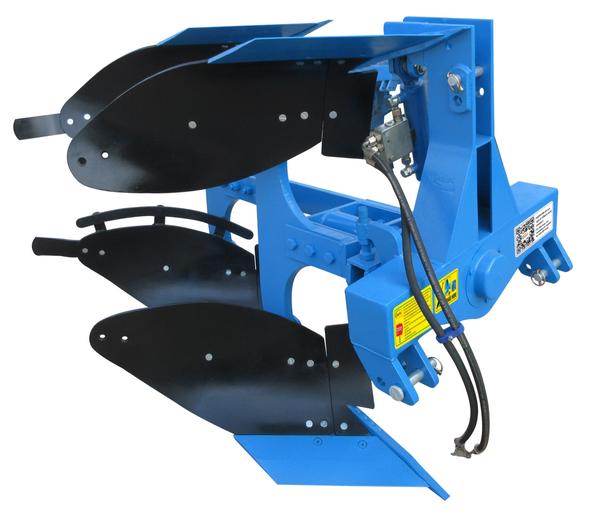

Brahmosh Series 2 Bottom Hydraulic Reversible MB Plough We are largest manufacturer of hydraulic reversible mb plough in India. Specification: -More and real savings of fuel -Best for deep tillage -Creating Parts by Latest Technology -Low load on the tractor -Tractor runs without slippage -Minimum use of tractor tyres -Trusted Hydraulic turnover system -Strong box Saxon frame -Strong Turnover Shaft -Combined with quite a modern welding system Video: https://www.youtube.com/watch?v=si1SAJ2xUSg

We are largest Manufacturer of Reversible Plough Mechanical with 2 furrow in Wankaner, Morbi, Rajkot, Gujarat. We having three model in this particular category i.e. URP ME 215, 30 and 35 with suit to for less HP tractor to reverse the land. for techical Specifiction Click here. http://umiyaploughindia.com/pages/reversibleploughmechanical2furrowmodelnourpme2153035specification/599a9c3b650b1808602e8d35

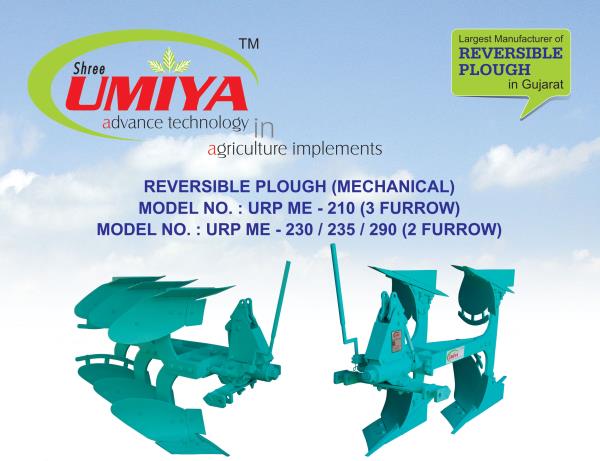

Patel Agro Industries is Leading Manufacturer of Reversible Plough with below Models in Mechanical series. Reversible Plough Mechanical 3 Furrow Model No. URP ME- 210 Reversible Plough Mechanical 2 Furrow Model No. URP ME- 230 Reversible Plough Mechanical 2 Furrow Model No. URP ME- 235 Reversible Plough Mechanical 2 Furrow Model No. URP ME- 290. This Mechanical reversible plough are available in two Furrow and three furrow which make more suitable for fulfillment of requirements of Farmers. for technical specification Click here http://umiyaploughindia.com/pages/reversibleploughmechanical2and3furrowmodelnourpme210230235290specification/599a94639965c40b4ccb6aa0

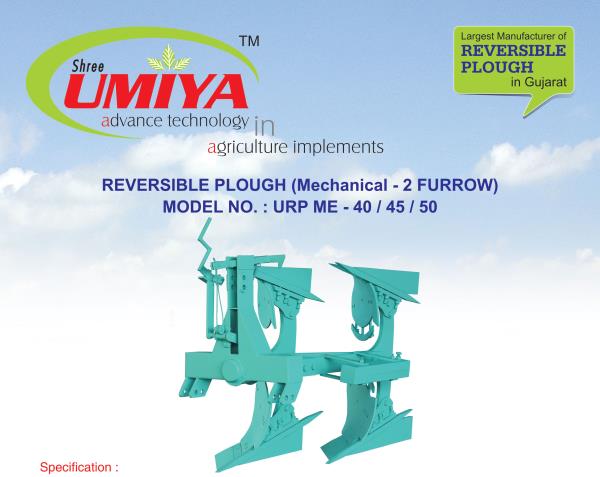

We always providing best quality Reversible Plough Mechanical two furrow from Wankaner, Morbi, Rajkot, Gujarat. Brand Name ; "Shree Umiya" Model No. : 1. URP ME- 40, 2. URP ME- 45, 3. URP ME- 50. It's ideal for to completely invert the soil, up-root all weeds, trash and crop residues and bury them under the soil. Quite easy to operate and very fast in all seasons. For technical specification Kindly Click Here. http://umiyaploughindia.com/pages/reversibleploughmechanical2furrowmodelnourpme404550/598ebc99a9a06906ec73c906

we Patel Agro Industries are Manufacturer and supplier of Reversible plough Double Cylinder 2 Furrow from Wankaner Morbi Rajkot Gujarat India with the Brand Name "Shree Umiya". Our Reversible plough Having Double cylinder and two furrow under the Model Number 1. URP DC-40, 2. URP DC-45 3. URP DC-50 4. URP DC-55 5. URP DC-75 which is directly mounted to the tractor. It's fast and time saving. No hassle during the ploughing and really maintenance free. Comes with the double cylinder system. For Technical Specification click here: http://umiyaploughindia.com/pages/reversibleploughdoublecylinder2furrow/598eb3af4beba006fca18ea1

Make in India URP SC 175 Technical Specification : Model : URP SC-175 SIZE : 3 FURROW FRAME : 90X90 SQUARE PIPE MAIN SHAFT : 70 MM TYNE : 80X25 WORKING WIDTH : 30 TO 42 INCH HEIGHT : 58 INCH BLADE : 10 MM MOULD BOARD : 8 MM ADJUSTMENT : HYDRAULIC WEIGHT (APPROX) : 540KG POWER REQUIRED : 65 HP & ABOVE https://patelagroindustries.nowfloats.com/pages/makeinindiaspecification/5982b9b1f821fe0a6070466b

We Shree Umiya Reversible Plough believe in Make in India concept that's why we launch our products with the model name Shree Umiya "Make in India" Technical Specification: Model : URP SC-111 SIZE : 2 FURROW FRAME : 90X90 SQUARE PIPE MAIN SHAFT : 70 MM TYNE : 80X25 WORKING WIDTH : 20 TO 28 INCH HEIGHT : 58 INCH BLADE : 10 MM MOULD BOARD : 8 MM ADJUSTMENT : HYDRAULIC WEIGHT (APPROX) : 425KG POWER REQUIRED : 50 HP & ABOVE
